S20Compact Precision

The entry-level workhorse. 20W of fibre laser power in a lightweight handheld unit — ideal for hobbyists, small workshops, and light-production marking.

6kg

From

20W

Fibre laser

250W

Max consumption

Book a Demo →

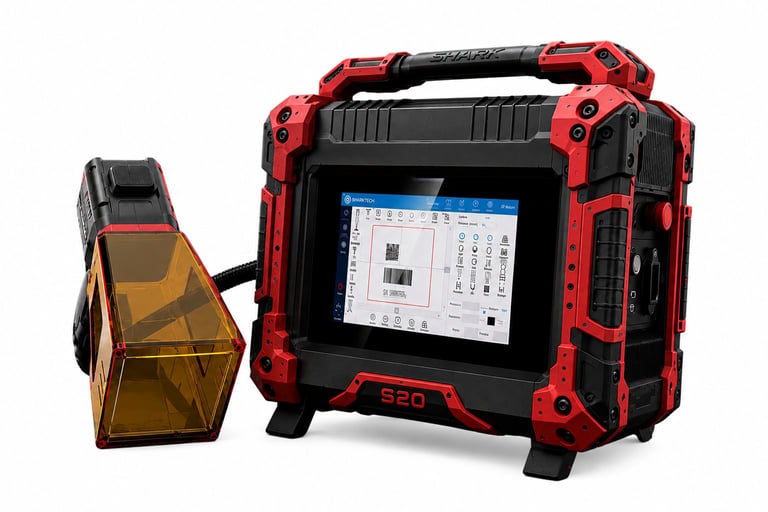

Black and red Shark Fabrication Technologies device with display screen on a work surface

KEY FEATURES

20W Fibre Laser Generator

Accessible 20W fibre laser. 1064nm wavelength. 0.03mm line width. ±0.01mm repeatable positioning accuracy. Ideal for marking metals, plastics, and coated surfaces on a hobbyist budget.

Lightweight Handheld Portability

Just 6kg in the plug-in configuration, 6.8kg with the battery. Operate it handheld — no rig, no mounting, no installation. Mark in place anywhere in the workshop, garage, or hobby bench.

Battery or Mains Power

Run from 220V AC for stationary use, or fit the 216Wh 10Ah rechargeable battery pack for cord-free operation anywhere on site.

8-Inch Touchscreen — Linux 8-Core

One-touch trigger operation via the bonded LCD display. Linux-backed control system with fast, stable response. No PC required — the machine is fully self-contained.

BATTERY OPTION

Cord-free operation on battery

The rechargeable 216Wh lithium battery module lets the S20 run at full power wherever you work — no mains required. Great for on-site marking, field work, and anywhere without ready power access.

216Wh

Capacity

10Ah

Current

TECHNICAL SPECIFICATIONS

Laser typeFibre laser generator (2nd generation)

Output power20W

Laser wavelength1064 nm

Marking range100 × 100 mm

Marking speed≤ 7,000 mm/s

Deflection / scanning mirrorHigh-precision 2D scanning system

Focus lensF100 / F160 / F210

Line width0.03 mm

Repeatable positioning accuracy0.01 mm

Master controlIntegrated motherboard, 8-inch capacitive touchscreen

Operating systemLinux

Marking softwareDedicated vector/bitmap marking software

Targeting methodRed light positioning and focusing

Character capacityUp to 800 characters (depends on material and content)

Font supportEnglish, numbers, other standard fonts

File formatsBMP, DXF, HPGL, JPEG, PLT, XLSX

Barcode formatsCODE39, CODE128, QR Code, etc.

Power supply220V AC, or 216Wh 10Ah battery

Power consumption145–250 W

Operating temperature0–40 °C

Total weight6 kg (plug-in) / 6.8 kg (battery)

What's in the box: S20 laser unit, focal length spacer set, accessory bag, power cord/adapter, user manual, warranty card, certificate of conformity, and packing list — all included.
