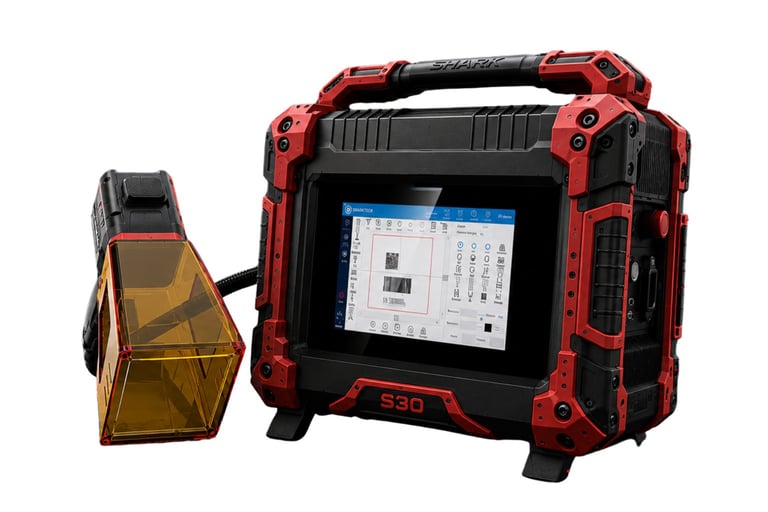

S30Industrial Performance

30W of precision fibre laser power built for production environments where accuracy and throughput aren't optional.

30W

Fibre laser

±0.01mm

Accuracy

7,000mm/s

Marking speed

Book a Demo →

Collection of electronic devices including a portable monitor with green handle, black speaker, and gaming controllers on a desk

KEY FEATURES

30W Second-Generation Fibre Laser

1064nm wavelength for deep, permanent marking on metals, plastics, and coated surfaces. Precision line width of 0.03mm with ±0.01mm repeatable positioning accuracy.

Precision Marking & Etching

High-precision two-dimensional scanning system with marking speeds up to 7,000mm/s. Interchangeable F100 / F160 / F210 focus lenses cover a 100×100mm marking range.

8-Inch Capacitive Touchscreen — Linux

Integrated motherboard with 8-inch capacitive touchscreen. Linux-based control with dedicated vector/bitmap marking software. No external PC required.

Battery or Mains Power

Run from 220V AC for stationary use, or fit the 216Wh 10Ah rechargeable battery pack for cord-free operation on site.

BATTERY OPTION

Cord-free mobile operation

The S30's rechargeable 216Wh battery module lets you mark at full power wherever you work — no mains required. Ideal for on-site marking, field work, and anywhere without ready power access.

216Wh

Battery capacity

10Ah

Rechargeable

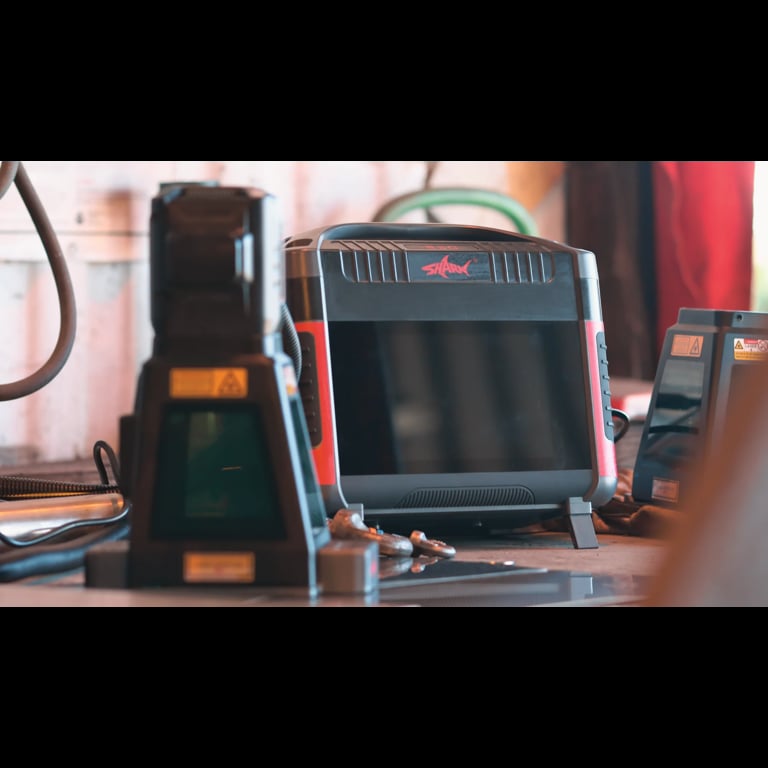

Black and red Shark Fabrication Technologies device with display screen on a work surface

TECHNICAL SPECIFICATIONS

Laser typeFibre laser generator (2nd generation)

Output power30W

Laser wavelength1064 nm

Marking range100 × 100 mm

Marking speed≤ 7,000 mm/s

Focus lensF100 / F160 / F210

Line width0.03 mm

Repeatable positioning accuracy±0.01 mm

Deflection / scanning mirrorHigh-precision 2D scanning system

Master controlIntegrated motherboard, 8-inch capacitive touchscreen

Operating systemLinux

Marking softwareDedicated vector/bitmap marking software

Targeting methodRed light positioning and focusing

Character capacityUp to 800 characters (depends on material and content)

Font supportEnglish, numbers, other standard fonts

File formatsBMP, DXF, HPGL, JPEG, PLT, XLSX

Barcode formatsCODE39, CODE128, QR Code, etc.

Power supply220V AC, or 216Wh 10Ah battery

Power consumption145–250 W

Operating temperature0–40 °C

Total weight6 kg (plug-in) / 6.8 kg (battery)

What's in the box: S30 laser unit, handheld lens module, focal length spacer set, accessory bag, power cord/adapter, user manual, warranty card, certificate of conformity, and packing list — all included.

SEE THE S30 ON YOUR OWN PARTS

This is the machine we demonstrate. We bring it to your floor. You watch it mark your parts. You decide.

Book a Demo Ask a Question
